Rancho Ynecita RFScada IO Record

Open Live Document in Google

Extracted Data

Show / Hide

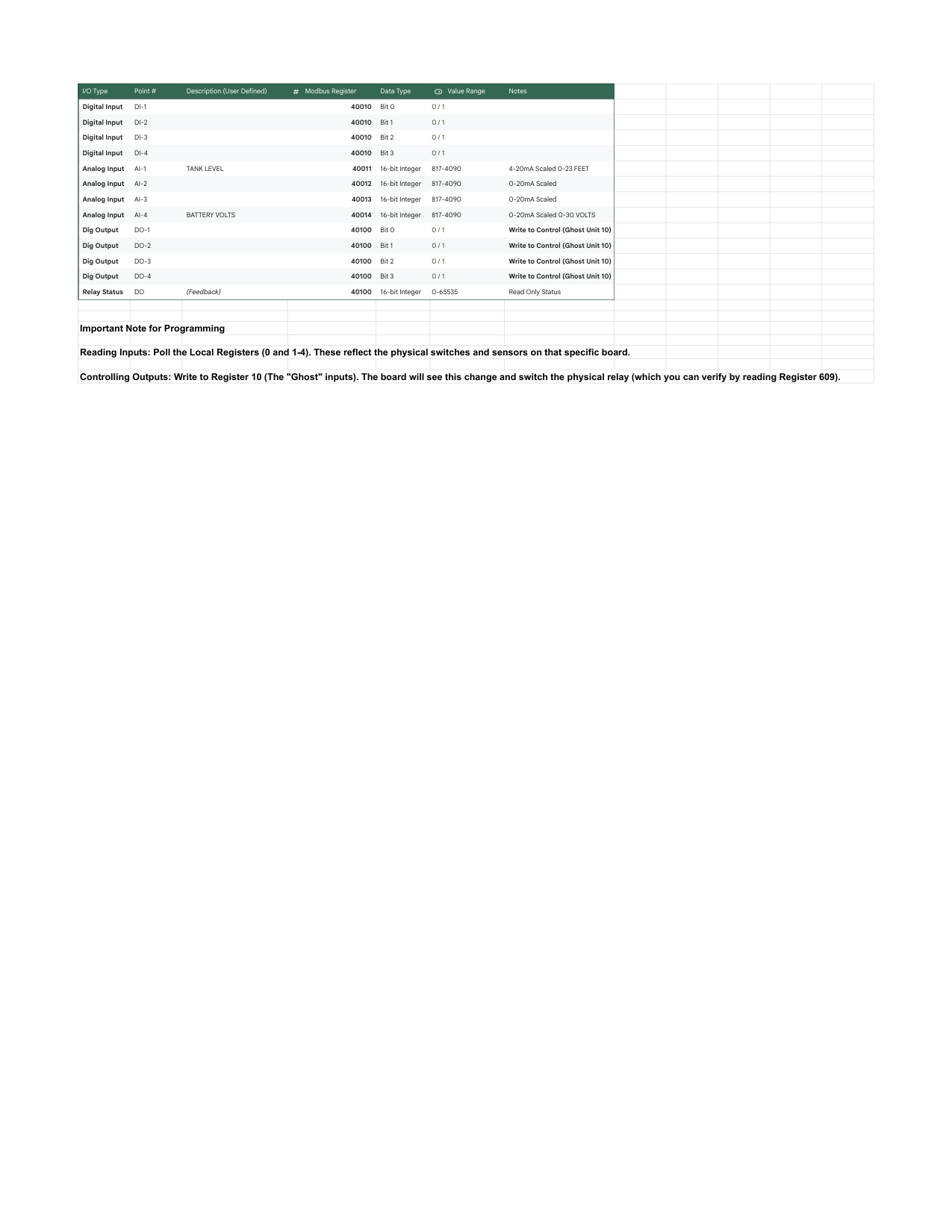

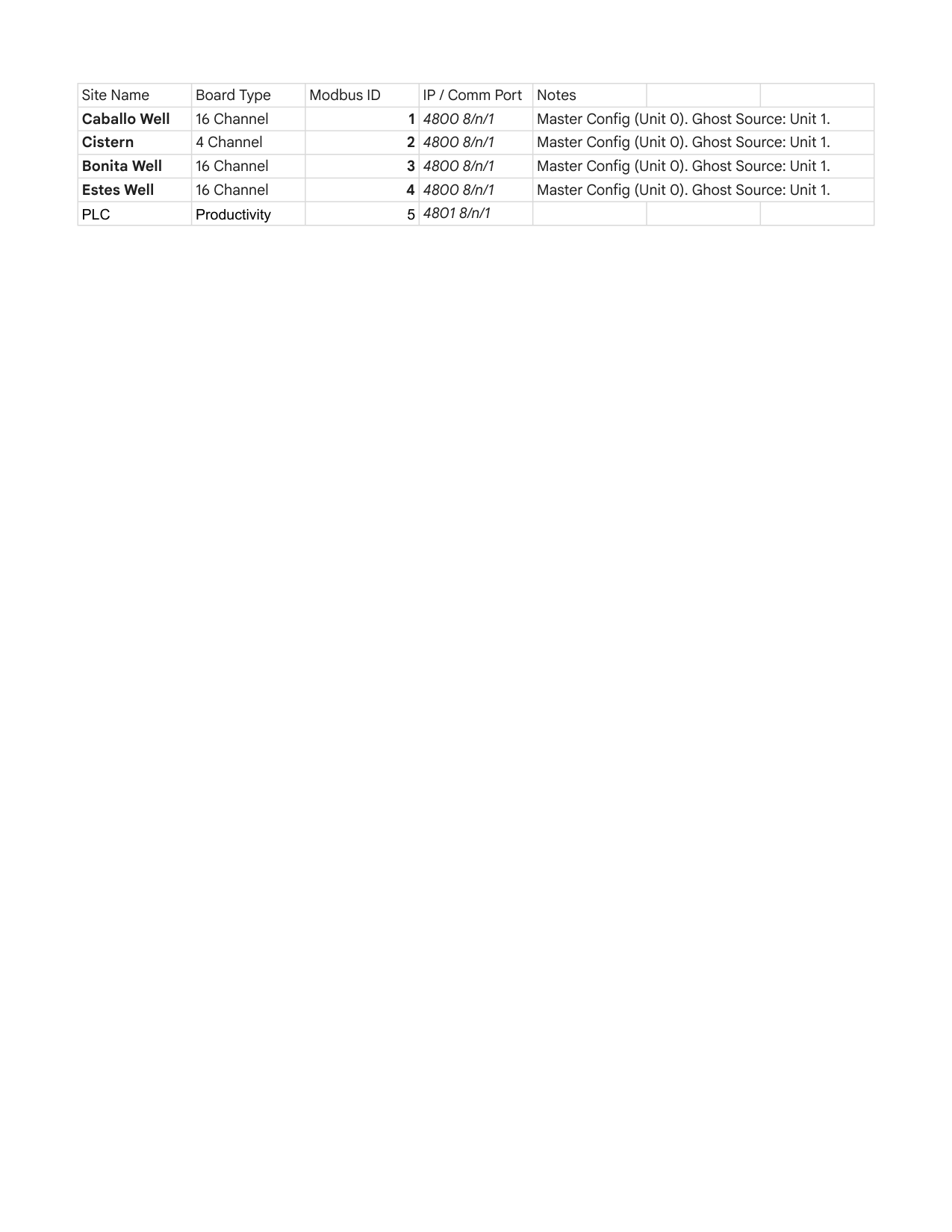

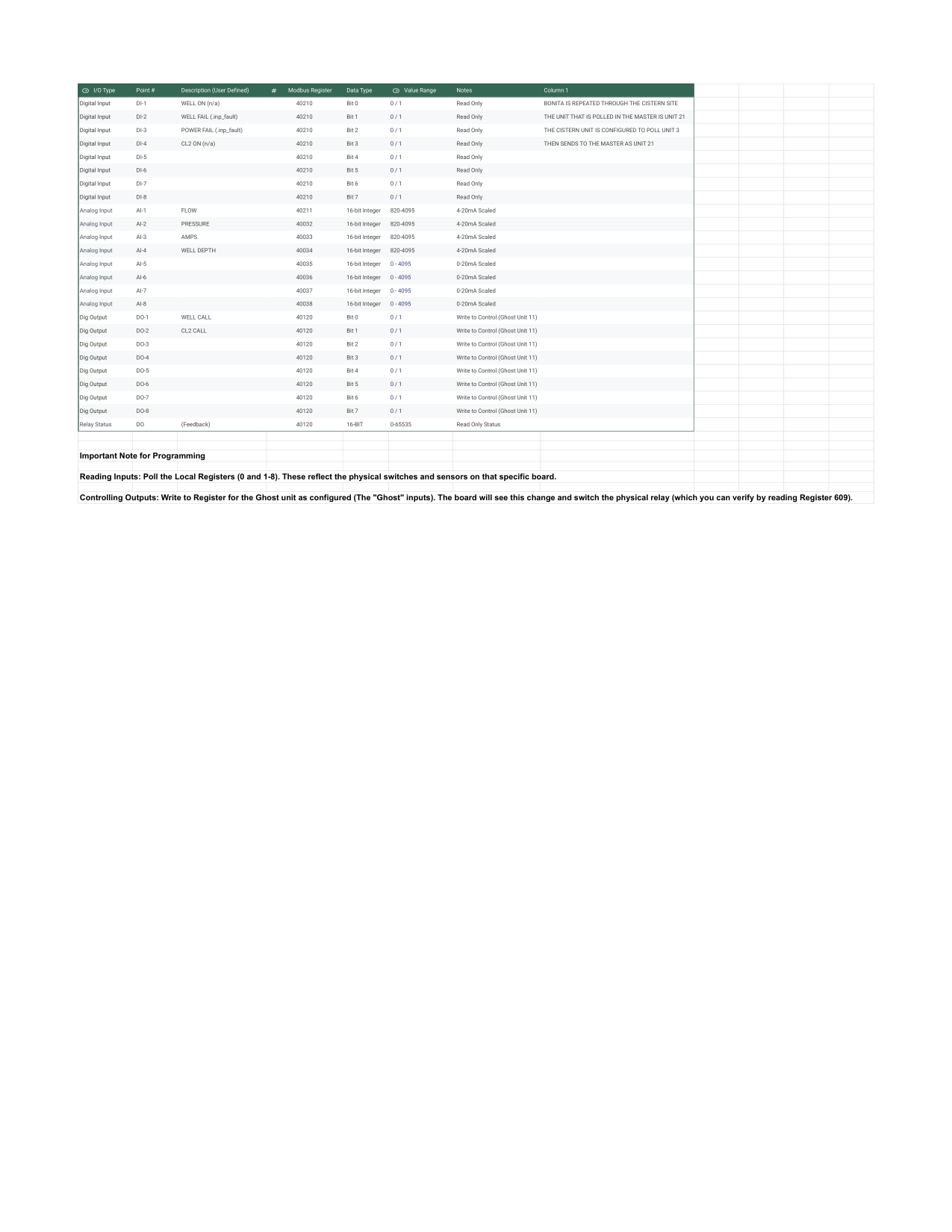

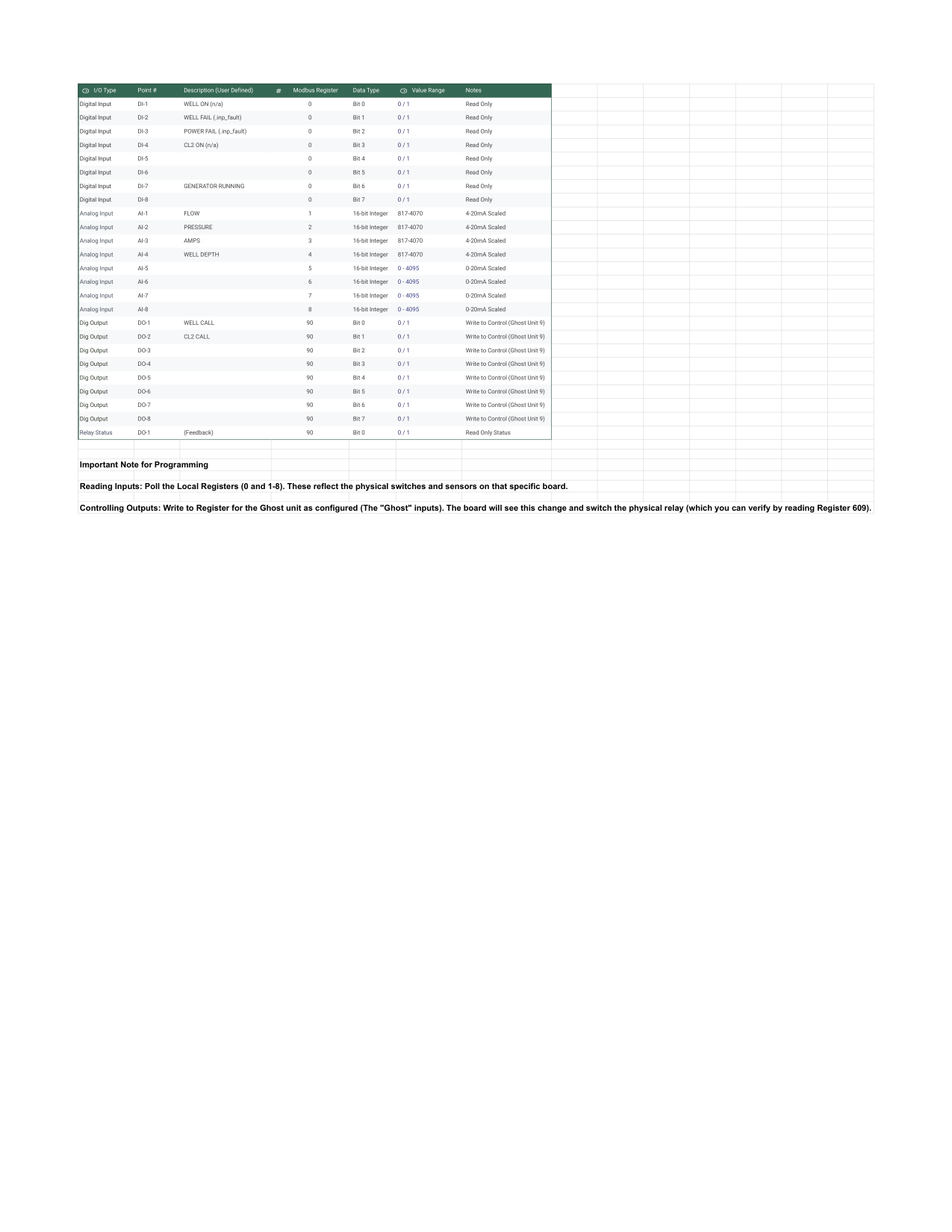

# Rancho Ynecita RFScada IO Record ## Preview ![[Rancho_Ynecita_RFScada_IO_Record_page1.png]] ![[Rancho_Ynecita_RFScada_IO_Record_page2.png]] ![[Rancho_Ynecita_RFScada_IO_Record_page3.png]] ![[Rancho_Ynecita_RFScada_IO_Record_page4.png]] ![[Rancho_Ynecita_RFScada_IO_Record_page5.png]] --- <details><summary>Extracted Data (all tabs)</summary> ## Overview | Site Name | Board Type | Modbus ID | IP / Comm Port | Notes | | --- | --- | --- | --- | --- | | Caballo Well | 16 Channel | 1 | 4800 8/n/1 | Master Config (Unit 0). Ghost Source: Unit 1. | | Cistern | 4 Channel | 2 | 4800 8/n/1 | Master Config (Unit 0). Ghost Source: Unit 1. | | Bonita Well | 16 Channel | 3 | 4800 8/n/1 | Master Config (Unit 0). Ghost Source: Unit 1. | | Estes Well | 16 Channel | 4 | 4800 8/n/1 | Master Config (Unit 0). Ghost Source: Unit 1. | | PLC | Productivity | 5 | 4801 8/n/1 | | ## CABALLO RF16 | I/O Type | Point # | Description (User Defined) | Modbus Register | Data Type | Value Range | Notes | | --- | --- | --- | --- | --- | --- | --- | | Digital Input | DI-1 | WELL ON (n/a) | 0 | Bit 0 | 0 / 1 | Read Only | | Digital Input | DI-2 | WELL FAIL (.inp_fault) | 0 | Bit 1 | 0 / 1 | Read Only | | Digital Input | DI-3 | POWER FAIL (.inp_fault) | 0 | Bit 2 | 0 / 1 | Read Only | | Digital Input | DI-4 | CL2 ON (n/a) | 0 | Bit 3 | 0 / 1 | Read Only | | Digital Input | DI-5 | | 0 | Bit 4 | 0 / 1 | Read Only | | Digital Input | DI-6 | | 0 | Bit 5 | 0 / 1 | Read Only | | Digital Input | DI-7 | GENERATOR RUNNING | 0 | Bit 6 | 0 / 1 | Read Only | | Digital Input | DI-8 | | 0 | Bit 7 | 0 / 1 | Read Only | | Analog Input | AI-1 | FLOW | 1 | 16-bit Integer | 817-4070 | 4-20mA Scaled | | Analog Input | AI-2 | PRESSURE | 2 | 16-bit Integer | 817-4070 | 4-20mA Scaled | | Analog Input | AI-3 | AMPS | 3 | 16-bit Integer | 817-4070 | 4-20mA Scaled | | Analog Input | AI-4 | WELL DEPTH | 4 | 16-bit Integer | 817-4070 | 4-20mA Scaled | | Analog Input | AI-5 | | 5 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | Analog Input | AI-6 | | 6 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | Analog Input | AI-7 | | 7 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | Analog Input | AI-8 | | 8 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | Dig Output | DO-1 | WELL CALL | 90 | Bit 0 | 0 / 1 | Write to Control (Ghost Unit 9) | | Dig Output | DO-2 | CL2 CALL | 90 | Bit 1 | 0 / 1 | Write to Control (Ghost Unit 9) | | Dig Output | DO-3 | | 90 | Bit 2 | 0 / 1 | Write to Control (Ghost Unit 9) | | Dig Output | DO-4 | | 90 | Bit 3 | 0 / 1 | Write to Control (Ghost Unit 9) | | Dig Output | DO-5 | | 90 | Bit 4 | 0 / 1 | Write to Control (Ghost Unit 9) | | Dig Output | DO-6 | | 90 | Bit 5 | 0 / 1 | Write to Control (Ghost Unit 9) | | Dig Output | DO-7 | | 90 | Bit 6 | 0 / 1 | Write to Control (Ghost Unit 9) | | Dig Output | DO-8 | | 90 | Bit 7 | 0 / 1 | Write to Control (Ghost Unit 9) | | Relay Status | DO-1 | (Feedback) | 90 | Bit 0 | 0 / 1 | Read Only Status | | | | | | | | | | | | | | | | | | Important Note for Programming | | | | | | | | | | | | | | | | Reading Inputs: Poll the Local Registers (0 and 1-8). These reflect the physical switches and sensors on that specific board. | | | | | | | | | | | | | | | | Controlling Outputs: Write to Register for the Ghost unit as configured (The "Ghost" inputs). The board will see this change and switch the physical relay (which you can verify by reading Register 609). | | | | | | | ## ESTES RF16 | I/O Type | Point # | Description (User Defined) | Modbus Register | Data Type | Value Range | Notes | Column 1 | | --- | --- | --- | --- | --- | --- | --- | --- | | Digital Input | DI-1 | WELL ON (n/a) | 40200 | Bit 0 | 0 / 1 | Read Only | ESTES IS REPEATED THROUGH THE CISTERN. | | Digital Input | DI-2 | WELL FAIL (.inp_fault) | 40200 | Bit 1 | 0 / 1 | Read Only | THE UNIT THAT IS POLLED FROM THE MASTER IS UNIT 20 | | Digital Input | DI-3 | POWER FAIL (.inp_fault) | 40200 | Bit 2 | 0 / 1 | Read Only | | | Digital Input | DI-4 | CL2 ON (n/a) | 40200 | Bit 3 | 0 / 1 | Read Only | | | Digital Input | DI-5 | | 40200 | Bit 4 | 0 / 1 | Read Only | | | Digital Input | DI-6 | | 40200 | Bit 5 | 0 / 1 | Read Only | | | Digital Input | DI-7 | | 40200 | Bit 6 | 0 / 1 | Read Only | | | Digital Input | DI-8 | | 40200 | Bit 7 | 0 / 1 | Read Only | | | Analog Input | AI-1 | FLOW | 40201 | 16-bit Integer | 820-4095 | 4-20mA Scaled | | | Analog Input | AI-2 | PRESSURE | 40202 | 16-bit Integer | 820-4095 | 4-20mA Scaled | | | Analog Input | AI-3 | AMPS | 40203 | 16-bit Integer | 820-4095 | 4-20mA Scaled | | | Analog Input | AI-4 | WELL DEPTH | 40204 | 16-bit Integer | 820-4095 | 4-20mA Scaled | | | Analog Input | AI-5 | | 40205 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | | Analog Input | AI-6 | | 40206 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | | Analog Input | AI-7 | | 40207 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | | Analog Input | AI-8 | | 40208 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | | Dig Output | DO-1 | WELL CALL | 40110 | Bit 0 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-2 | CL2 CALL | 40110 | Bit 1 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-3 | | 40110 | Bit 2 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-4 | | 40110 | Bit 3 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-5 | | 40110 | Bit 4 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-6 | | 40110 | Bit 5 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-7 | | 40110 | Bit 6 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-8 | | 40110 | Bit 7 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Relay Status | DO | (Feedback) | 40110 | 16-BIT | 0-65535 | Read Only Status | | | | | | | | | | | | | | | | | | | | | Important Note for Programming | | | | | | | | | | | | | | | | | | Reading Inputs: Poll the Local Registers (0 and 1-8). These reflect the physical switches and sensors on that specific board. | | | | | | | | | | | | | | | | | | Controlling Outputs: Write to Register for the Ghost unit as configured (The "Ghost" inputs). The board will see this change and switch the physical relay (which you can verify by reading Register 609). | | | | | | | | ## BONITA RF16 | I/O Type | Point # | Description (User Defined) | Modbus Register | Data Type | Value Range | Notes | Column 1 | | --- | --- | --- | --- | --- | --- | --- | --- | | Digital Input | DI-1 | WELL ON (n/a) | 40210 | Bit 0 | 0 / 1 | Read Only | BONITA IS REPEATED THROUGH THE CISTERN SITE | | Digital Input | DI-2 | WELL FAIL (.inp_fault) | 40210 | Bit 1 | 0 / 1 | Read Only | THE UNIT THAT IS POLLED IN THE MASTER IS UNIT 21 | | Digital Input | DI-3 | POWER FAIL (.inp_fault) | 40210 | Bit 2 | 0 / 1 | Read Only | THE CISTERN UNIT IS CONFIGURED TO POLL UNIT 3 | | Digital Input | DI-4 | CL2 ON (n/a) | 40210 | Bit 3 | 0 / 1 | Read Only | THEN SENDS TO THE MASTER AS UNIT 21 | | Digital Input | DI-5 | | 40210 | Bit 4 | 0 / 1 | Read Only | | | Digital Input | DI-6 | | 40210 | Bit 5 | 0 / 1 | Read Only | | | Digital Input | DI-7 | | 40210 | Bit 6 | 0 / 1 | Read Only | | | Digital Input | DI-8 | | 40210 | Bit 7 | 0 / 1 | Read Only | | | Analog Input | AI-1 | FLOW | 40211 | 16-bit Integer | 820-4095 | 4-20mA Scaled | | | Analog Input | AI-2 | PRESSURE | 40032 | 16-bit Integer | 820-4095 | 4-20mA Scaled | | | Analog Input | AI-3 | AMPS | 40033 | 16-bit Integer | 820-4095 | 4-20mA Scaled | | | Analog Input | AI-4 | WELL DEPTH | 40034 | 16-bit Integer | 820-4095 | 4-20mA Scaled | | | Analog Input | AI-5 | | 40035 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | | Analog Input | AI-6 | | 40036 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | | Analog Input | AI-7 | | 40037 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | | Analog Input | AI-8 | | 40038 | 16-bit Integer | 0 - 4095 | 0-20mA Scaled | | | Dig Output | DO-1 | WELL CALL | 40120 | Bit 0 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-2 | CL2 CALL | 40120 | Bit 1 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-3 | | 40120 | Bit 2 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-4 | | 40120 | Bit 3 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-5 | | 40120 | Bit 4 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-6 | | 40120 | Bit 5 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-7 | | 40120 | Bit 6 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Dig Output | DO-8 | | 40120 | Bit 7 | 0 / 1 | Write to Control (Ghost Unit 11) | | | Relay Status | DO | (Feedback) | 40120 | 16-BIT | 0-65535 | Read Only Status | | | | | | | | | | | | | | | | | | | | | Important Note for Programming | | | | | | | | | | | | | | | | | | Reading Inputs: Poll the Local Registers (0 and 1-8). These reflect the physical switches and sensors on that specific board. | | | | | | | | | | | | | | | | | | Controlling Outputs: Write to Register for the Ghost unit as configured (The "Ghost" inputs). The board will see this change and switch the physical relay (which you can verify by reading Register 609). | | | | | | | | ## CISTERN RF4 | I/O Type | Point # | Description (User Defined) | Modbus Register | Data Type | Value Range | Notes | | --- | --- | --- | --- | --- | --- | --- | | Digital Input | DI-1 | | 40010 | Bit 0 | 0 / 1 | | | Digital Input | DI-2 | | 40010 | Bit 1 | 0 / 1 | | | Digital Input | DI-3 | | 40010 | Bit 2 | 0 / 1 | | | Digital Input | DI-4 | | 40010 | Bit 3 | 0 / 1 | | | Analog Input | AI-1 | TANK LEVEL | 40011 | 16-bit Integer | 817-4090 | 4-20mA Scaled 0-23 FEET | | Analog Input | AI-2 | | 40012 | 16-bit Integer | 817-4090 | 0-20mA Scaled | | Analog Input | AI-3 | | 40013 | 16-bit Integer | 817-4090 | 0-20mA Scaled | | Analog Input | AI-4 | BATTERY VOLTS | 40014 | 16-bit Integer | 817-4090 | 0-20mA Scaled 0-30 VOLTS | | Dig Output | DO-1 | | 40100 | Bit 0 | 0 / 1 | Write to Control (Ghost Unit 10) | | Dig Output | DO-2 | | 40100 | Bit 1 | 0 / 1 | Write to Control (Ghost Unit 10) | | Dig Output | DO-3 | | 40100 | Bit 2 | 0 / 1 | Write to Control (Ghost Unit 10) | | Dig Output | DO-4 | | 40100 | Bit 3 | 0 / 1 | Write to Control (Ghost Unit 10) | | Relay Status | DO | (Feedback) | 40100 | 16-bit Integer | 0-65535 | Read Only Status | | | | | | | | | | | | | | | | | | Important Note for Programming | | | | | | | | | | | | | | | | Reading Inputs: Poll the Local Registers (0 and 1-4). These reflect the physical switches and sensors on that specific board. | | | | | | | | | | | | | | | | Controlling Outputs: Write to Register 10 (The "Ghost" inputs). The board will see this change and switch the physical relay (which you can verify by reading Register 609). | | | | | | | </details>
