# IGNITION GRAPHICS WORK

## Preview

![[IGNITION_GRAPHICS_WORK_page1.png]]

![[IGNITION_GRAPHICS_WORK_page16.png]]

![[IGNITION_GRAPHICS_WORK_page18.png]]

![[IGNITION_GRAPHICS_WORK_page20.png]]

![[IGNITION_GRAPHICS_WORK_page21.png]]

---

<details><summary>Extracted Data (all tabs)</summary>

## GFX TASKS

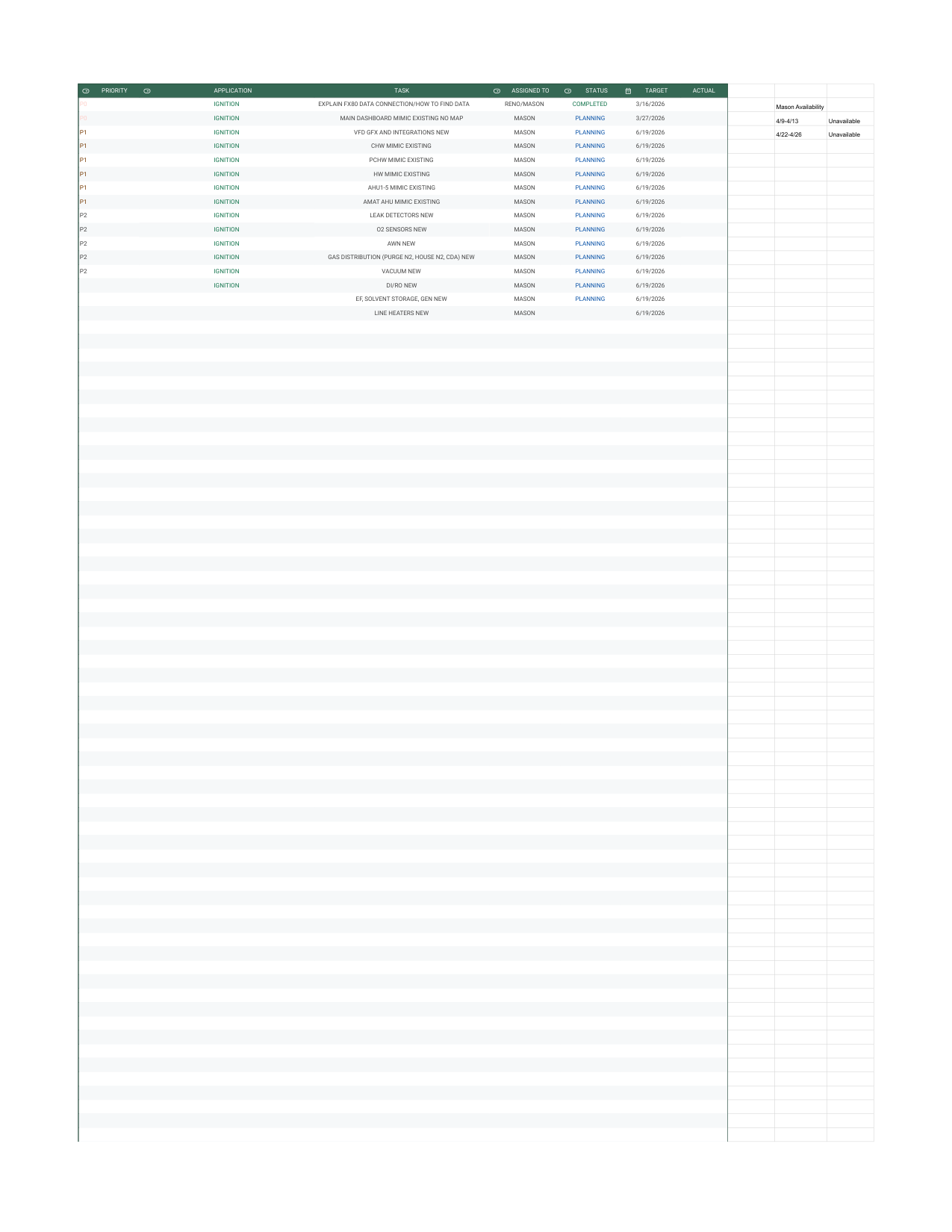

| PRIORITY | APPLICATION | TASK | ASSIGNED TO | STATUS | TARGET | ACTUAL |  |  |  |
| --- | --- | --- | --- | --- | --- | --- | --- | --- | --- |
| P0 | IGNITION | EXPLAIN FX80 DATA CONNECTION/HOW TO FIND DATA | RENO/MASON | COMPLETED | 3/16/2026 |  |  | Mason Availability |  |
| P0 | IGNITION | MAIN DASHBOARD MIMIC EXISTING NO MAP | MASON | PLANNING | 3/27/2026 |  |  | 4/9-4/13  | Unavailable |
| P1 | IGNITION | VFD GFX AND INTEGRATIONS NEW | MASON | PLANNING | 6/19/2026 |  |  | 4/22-4/26 | Unavailable |
| P1 | IGNITION | CHW MIMIC EXISTING | MASON | PLANNING | 6/19/2026 |  |  |  |  |
| P1 | IGNITION | PCHW MIMIC EXISTING | MASON | PLANNING | 6/19/2026 |  |  |  |  |
| P1 | IGNITION | HW MIMIC EXISTING | MASON | PLANNING | 6/19/2026 |  |  |  |  |
| P1 | IGNITION | AHU1-5 MIMIC EXISTING | MASON | PLANNING | 6/19/2026 |  |  |  |  |
| P1 | IGNITION | AMAT AHU MIMIC EXISTING | MASON | PLANNING | 6/19/2026 |  |  |  |  |
| P2 | IGNITION | LEAK DETECTORS NEW | MASON | PLANNING | 6/19/2026 |  |  |  |  |
| P2 | IGNITION | O2 SENSORS NEW | MASON | PLANNING | 6/19/2026 |  |  |  |  |
| P2 | IGNITION | AWN NEW | MASON | PLANNING | 6/19/2026 |  |  |  |  |
| P2 | IGNITION | GAS DISTRIBUTION (PURGE N2, HOUSE N2, CDA) NEW | MASON | PLANNING | 6/19/2026 |  |  |  |  |
| P2 | IGNITION | VACUUM NEW | MASON | PLANNING | 6/19/2026 |  |  |  |  |
|  | IGNITION | DI/RO NEW | MASON | PLANNING | 6/19/2026 |  |  |  |  |
|  |  | EF, SOLVENT STORAGE, GEN NEW | MASON | PLANNING | 6/19/2026 |  |  |  |  |
|  |  | LINE HEATERS NEW | MASON |  | 6/19/2026 |  |  |  |  |

## N4 TO IGNITION ROADMAP

| STEP |  |  |
| --- | --- | --- |
| 1 | DASHBOARD PROOF OF CONCEPT | 03/27/2026 |
| 2 |  |  |
| 3 |  |  |
| 4 |  |  |
| 5 |  |  |
| 6 |  |  |
| 7 |  |  |
| 8 |  |  |
| 9 |  |  |
| 10 |  |  |
| 11 |  |  |
| 12 |  |  |
| 13 |  |  |
| 14 |  |  |
| 15 |  |  |
| 16 |  |  |
| 17 |  |  |
| 18 |  |  |
| 19 |  |  |

## IGNITION TO FX80

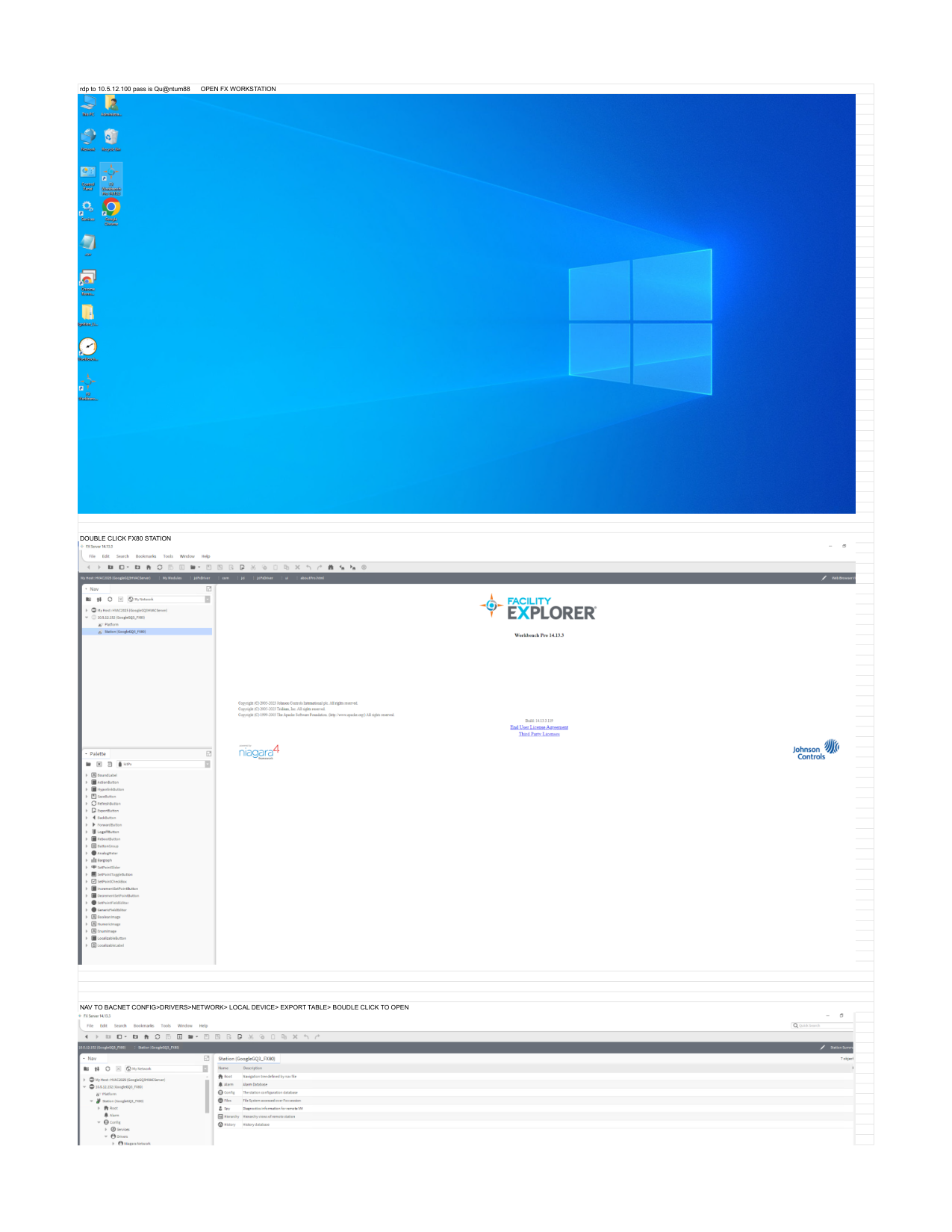

| rdp to 10.5.12.100 pass is Qu@ntum88      OPEN FX WORKSTATION |
| --- |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
| DOUBLE CLICK FX80 STATION |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
| NAV TO BACNET CONFIG>DRIVERS>NETWORK> LOCAL DEVICE> EXPORT TABLE> BOUDLE CLICK TO OPEN |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
| SELECT RIGHT MOST MENU EXPANSION AND SELECT EXPORT |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
| EXPORT FILE TO CSV OR USE HERE |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |

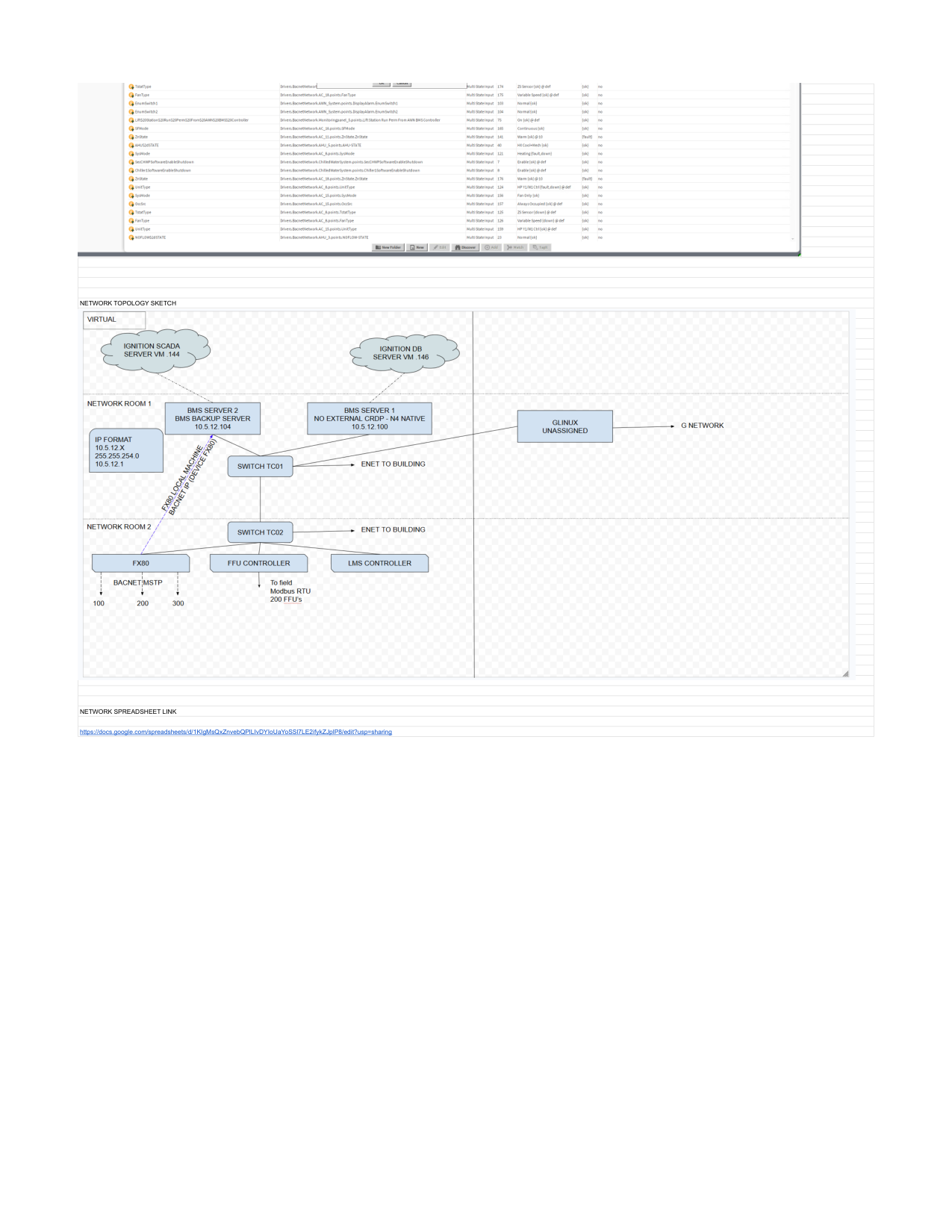

| NETWORK TOPOLOGY SKETCH |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
|  |
| NETWORK SPREADSHEET LINK |
|  |
| https://docs.google.com/spreadsheets/d/1KIgMsQxZnvebQPlLIvDYIoUaYoSSl7LE2ifykZJplP8/edit?usp=sharing |

## EXISTING HOME DASHBOARD ALARM LOGIC

| LOGIC IS FOUND IN FACILITY EXPLORER BY PATH : My Host>Station>Config>Drivers>Niagara Network>  |
| --- |

## MAIN DASHBOARD AGGREGATE ALARM MATRICES

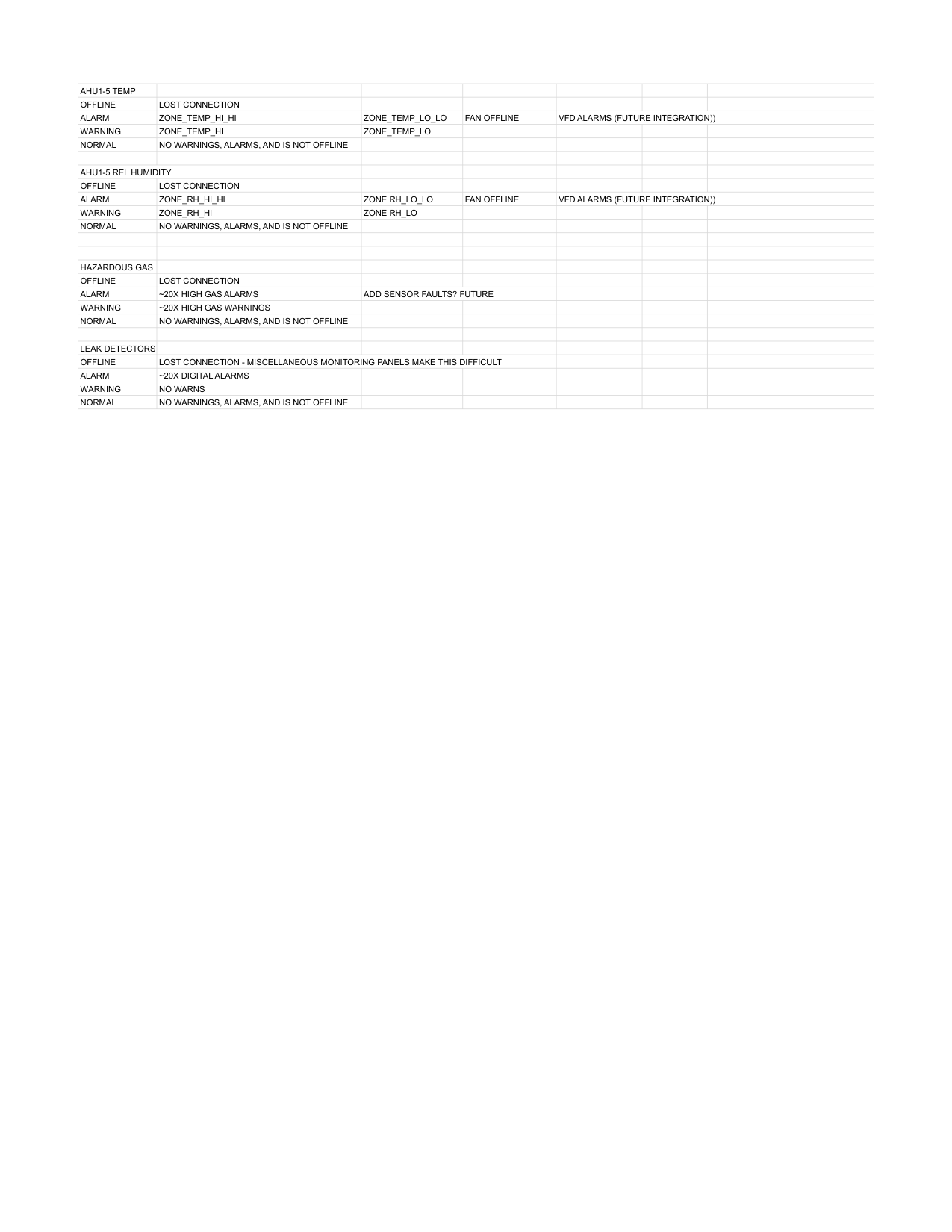

| AHU1-5 TEMP |  |  |  |  |
| --- | --- | --- | --- | --- |
| OFFLINE | LOST CONNECTION |  |  |  |
| ALARM | ZONE_TEMP_HI_HI | ZONE_TEMP_LO_LO | FAN OFFLINE | VFD ALARMS (FUTURE INTEGRATION)) |
| WARNING | ZONE_TEMP_HI | ZONE_TEMP_LO |  |  |
| NORMAL | NO WARNINGS, ALARMS, AND IS NOT OFFLINE |  |  |  |
|  |  |  |  |  |
| AHU1-5 REL HUMIDITY |  |  |  |  |
| OFFLINE | LOST CONNECTION |  |  |  |
| ALARM | ZONE_RH_HI_HI | ZONE RH_LO_LO | FAN OFFLINE | VFD ALARMS (FUTURE INTEGRATION)) |
| WARNING | ZONE_RH_HI | ZONE RH_LO |  |  |
| NORMAL | NO WARNINGS, ALARMS, AND IS NOT OFFLINE |  |  |  |
|  |  |  |  |  |
|  |  |  |  |  |
| HAZARDOUS GAS |  |  |  |  |
| OFFLINE | LOST CONNECTION |  |  |  |
| ALARM | ~20X HIGH GAS ALARMS | ADD SENSOR FAULTS? FUTURE |  |  |
| WARNING | ~20X HIGH GAS WARNINGS |  |  |  |
| NORMAL | NO WARNINGS, ALARMS, AND IS NOT OFFLINE |  |  |  |
|  |  |  |  |  |
| LEAK DETECTORS |  |  |  |  |
| OFFLINE | LOST CONNECTION - MISCELLANEOUS MONITORING PANELS MAKE THIS DIFFICULT |  |  |  |
| ALARM | ~20X DIGITAL ALARMS |  |  |  |
| WARNING | NO WARNS |  |  |  |
| NORMAL | NO WARNINGS, ALARMS, AND IS NOT OFFLINE |  |  |  |

## MULTISTATE_INDICATORS_FOR _DISPLAYALARMS

|  |  |  |  |  |  |  |  |
| --- | --- | --- | --- | --- | --- | --- | --- |
|  |  |  |  |  |  |  |  |
|  |  |  |  |  |  |  |  |
|  |  |  |  |  |  |  |  |

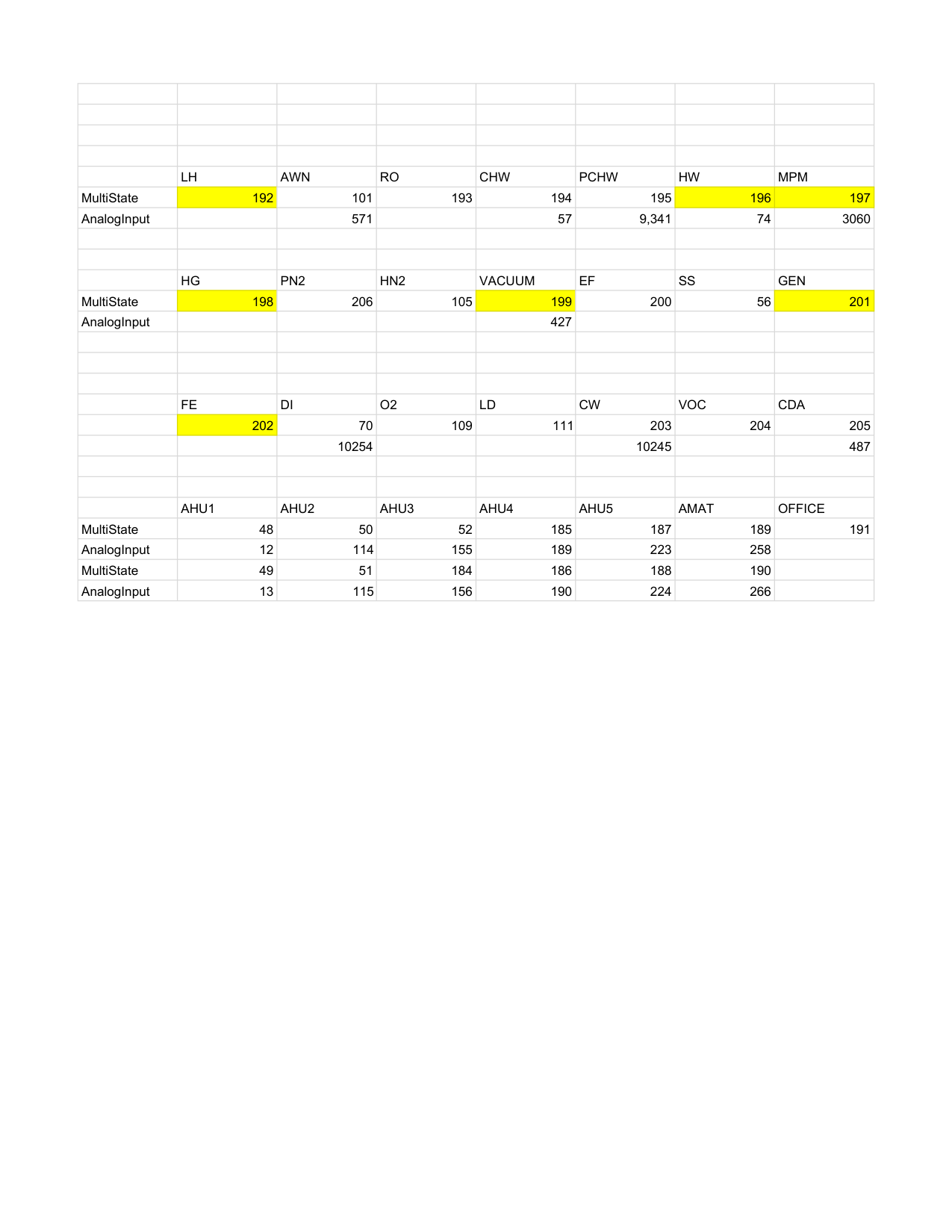

|  | LH | AWN | RO | CHW | PCHW | HW | MPM |
| MultiState | 192 | 101 | 193 | 194 | 195 | 196 | 197 |
| AnalogInput |  | 571 |  | 57 | 9,341 | 74 | 3060 |
|  |  |  |  |  |  |  |  |
|  |  |  |  |  |  |  |  |
|  | HG | PN2 | HN2 | VACUUM | EF | SS | GEN |
| MultiState | 198 | 206 | 105 | 199 | 200 | 56 | 201 |
| AnalogInput |  |  |  | 427 |  |  |  |
|  |  |  |  |  |  |  |  |
|  |  |  |  |  |  |  |  |
|  |  |  |  |  |  |  |  |
|  | FE | DI | O2 | LD | CW | VOC | CDA |
|  | 202 | 70 | 109 | 111 | 203 | 204 | 205 |
|  |  | 10254 |  |  | 10245 |  | 487 |
|  |  |  |  |  |  |  |  |
|  |  |  |  |  |  |  |  |
|  | AHU1 | AHU2 | AHU3 | AHU4 | AHU5 | AMAT | OFFICE |
| MultiState | 48 | 50 | 52 | 185 | 187 | 189 | 191 |
| AnalogInput | 12 | 114 | 155 | 189 | 223 | 258 |  |
| MultiState | 49 | 51 | 184 | 186 | 188 | 190 |  |
| AnalogInput | 13 | 115 | 156 | 190 | 224 | 266 |  |
